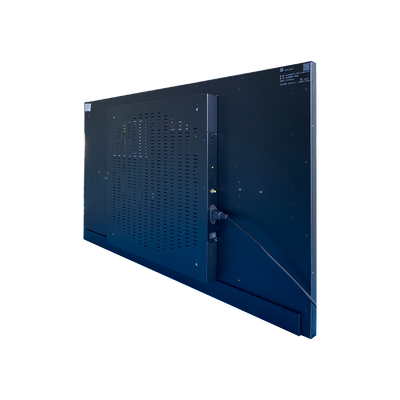

JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
Dettagli:
| Luogo di origine: | Cina |
| Marca: | JCVISION |
| Certificazione: | CE/ROHS |
| Documento: | JCVISION 43inch Semi-outdoo...) .pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Tempi di consegna: | 10 giorni |
| Termini di pagamento: | TT |
|
Informazioni dettagliate |
|||
| Tempo di risposta: | 6ms,8ms,5ms,14 (tip.)(Tr+Td),6,5ms | Tipo: | TFT, display LCD, chiosco per segnaletica digitale TV con schermo LCD per pubblicità esterna |
|---|---|---|---|
| Luminosità: | 2000 cd/m2,450 cd/m2,2000 nit,1500/m2,500 cd/m2 | Applicazione: | Esterno |
| Tensione in ingresso: | CA 100~240 V 50/60 HZ,CA 110 V~240 V,50/60 Hz,320 W,CA 100~240 V 50-60 HZ | Angolo di visione: | 178 /178,89/89/89/89,178°/178°,178 °V /178°H,89°/89°89°/89°(Tipico) |
| Passo pixel: | 0,4845(A)*0,4845 (V),0,4845 mm,0,831(A) x 0,831(V),0,08275*0,24825,0,0817(A) X 0,2451(V) mm | Garanzia: | 1 anno, un anno, 2 anni, 3 anni, 12 mesi |
| Colore: | 16,7 milioni, nero/argento/bianco, oppure opzionale, colore, nero | Dimensioni del pannello: | 42 pollici, personalizzato, 55 pollici, 65 pollici, 230x105x35 mm |
| Risoluzione massima: | 1920*1080,1920(RGB)*1080(FHD),1080P,3840*2160 | Nome del prodotto: | Display pubblicitario per segnaletica digitale esterna ad alta luminosità da 55 pollici, computer PC |
| Servizio post-vendita fornito: | Supporto tecnico video, supporto online, pezzi di ricambio gratuiti, installazione sul campo, messa | processore: | 2 GHz, A83T, octa-core, ARM A17 Quad 2,0 GHz, dual-core |
| Schermo tattile: | Tocco a lamina multipunto, tocco capacitivo a 10 punti/ir, tocco a lamina (opzionale), tocco IR (toc | Materiale: | Custodia in metallo + pannello in vetro temperato, acciaio laminato a freddo, custodia in metallo + |
| Installazione: | da pavimento, da pavimento o personalizzato | Misurare: | 42~65 pollici, 65", 65 pollici (altre dimensioni disponibili), 50", 17-84 pollici Opzional |
| Sistema operativo: | Android 5.1,Android 4.4,X86 Windows7,CF/SD/USB,Android (Windows opzionale) | ||
| Evidenziare: | 43inch semi-outdoor digital signage display,high brightness outdoor display screen,double-sided outdoor digital signage |
||
Descrizione di prodotto
JCVISION Technology Inc
43inch Semi-outdoor High brightness display
Features
u AppearanceAdopting an industrial-grade structural design concept, it features a one-piece molded frame, a slim and aesthetically pleasing body, simple installation and convenient maintenance, and a unique heat dissipation technology that supports 24/7 operation.
u High Definition: Utilizes an IPS high-definition LCD panel, featuring vibrant colors, high brightness, and supports up to 2160P video and image decoding playback, achieving high-quality image output.
u intelligent:Equipped with an intelligent input and display system, it features a wide range of mainstream ports, powerful audio and video decoding capabilities, automatic signal recognition, simple operation, and meets diverse usage needs.
u Scenarios: Supports horizontal/vertical installation, applicable to a wide range of scenarios, and is widely favored by government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, and other industries.
u High-end: Combining numerous advantages such as aesthetics, high definition, explosion-proof, ease of use, commercial application, and intelligence, it is a high-end commercial display terminal device favored by many industries.
|
Trade Condition |
|
|||
|
Model No. |
JC-OW-S43A-NT |
|
||
|
Display parameters |
|
|||
|
LCD Grade |
New A+ LCD display panel |
|
||
|
Panel size |
43 inches |
|
||
|
resolution |
1920*1080 |
|
||
|
Viewing angle |
89/89/89/89 |
|
||
|
Display area |
940.896*529.254mm (H×V) |
|
||
|
Display ratio |
16:9 |
|
||
|
Backlight type |
E-LDE |
|
||
|
Screen brightness |
Single side 700nits/1000-3000NITS (option) Double side normally window side 2500 nits, indoor side 700 nits(potion) |
|
||
|
refresh rate |
60Hz |
|
||
|
Surface treatment |
Matte finish (Haze 1%) |
|
||
|
Supported colors |
16.7M (8-bit) |
|
||
|
Fuselage parameters |
|
|||
|
Available colors |
black |
|
||
|
Border material |
Aluminum profiles |
|
||
|
Body material |
Cold-rolled steel sheet for hardware (metal spraying) |
|
||
|
Border size |
5mm |
|
||
|
Body size |
953.5*544.5*59.5mm (excluding wall mount) |
|
||
|
Packaging size |
1080*150*677mm |
|
||
|
Wall mount bracket |
Horizontal/Vertical Universal Version |
|
||
|
Hanging hole spacing |
400*400 |
|
||
|
Packaging material |
Neutral thickened cardboard box |
|
||
|
net weight |
11.2KG |
|
||
|
Gross weight |
13.9KG |
|
||
|
Installation method |
Wall-mounted/Embedded/Hanging/Floor-mounted |
|
||
|
Display System (optional) |
|
|||
|
Motherboard |
Display Solution |
|
||
|
Support video |
MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support super HD 2160P video |
|
||
|
Support picture |
JPG/JPEG/ PNG/BMP |
|
||
|
Timer |
Set time on/off auto |
|
||
|
Image rotate |
support 90°,180°,270° image rotate |
|
||
|
Android System (optional) |
|
|||
|
Motherboard |
RK3566/RK3576/RK3588 |
|
||
|
Operating system |
11.0/14.0/13.0 |
|
||
|
Main frequency |
1.8G HZ/2.2HZ/2.4HZ |
|
||
|
Memory |
2G/4G/8G (Optional) |
|
||
|
Storage |
32G/64G/128G(Optional) |
|
||
|
Input/output |
RJ45,HDMI out,USB*2,audio,TFcard, and option for HDMI IN |
|
||
|
Windows System (optional) |
|
|
||
|
Cpu |
I5 10th Gen/I5/I7 (optional) |
|
|
|
|
Operating system |
Win10/ Win11 |
|
|
|
|
Memory |
4G/8G/16G (Optional) |
|
|
|
|
Storage |
128/256G /512G/1T SSD (Optional) |
|
|
|
|
Input/output |
RJ45,HDMI out,USB2.0,USB3.0,audio |
|
|
|
|
System Functions |
|
|
||
|
Language selection |
Supports English, Chinese, and multiple languages. |
|
||
|
Video Decoding |
Highest support2160PVideo and image decoding and playback |
|
||
|
Power-on method |
Automatic start upon power-on, remote control on/off |
|
||
|
Signal recognition |
Automatically identify signal input source |
|
||
|
hibernation function |
Automatically enters sleep mode when no signal input. |
|
||
|
Idle animation |
Customizable standby screen |
|
||
|
Boot screen |
Customizable boot timeLOGO |
|
||
|
Remote control function |
Supports remote control operation |
|
||
|
USBFunction |
upgrade/Multimedia playback |
|
|
|
|
Audio function |
Built-in two high-quality tweeters |
|
|
|
|
screen rotation |
Follow the display orientation of the input host. |
|
|
|
|
Video support |
480P, 480p, 576P, 576p, 720p, 1080P, 1080p, 4Kx2K@60Hz |
|
|
|
|
Electrical performance |
|
|
||
|
Rated voltage |
AC110-220V |
|
|
|
|
standby power |
≤1W |
|
|
|
|
Rated power |
≦167W |
|
|
|
|
Operating temperature |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Storage environment |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Dimensions(Show separately) |
|
|
||
