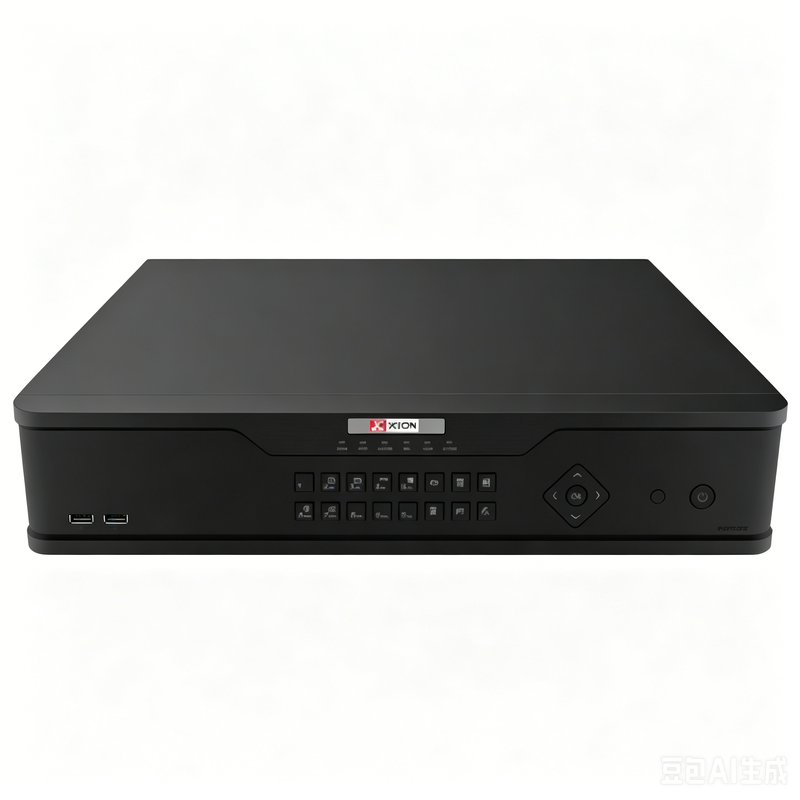

Durable Network Video Recorder Providing Video Management And Data Storage Suitable For Large Scale Surveillance Deployments
Dettagli:
| Luogo di origine: | Cina |
| Marca: | JCVision |
| Numero di modello: | Serie JC-NVR4MP32CH |
Termini di pagamento e spedizione:
| Termini di pagamento: | T/T |
|---|
|
Informazioni dettagliate |
|||
| Evidenziare: | Durable Network Video Recorder,Video Management Network Video Recorder,Data Storage Network Video Recorder |
||
|---|---|---|---|
Descrizione di prodotto
Features
Support Ultra H.265/H.265/H.264 video formats 16/32 channel input Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution Support HDMI and VGA simultaneous output Up to 12 Megapixels resolution recording ANR technology to enhance the storage reliability when the network is disconnected Support cloud upgrade
Specifications
| Model | JC-NVR4MP32CH |
| Decoding | |
| Decoding Format | Ultra 265,H.265,H.264 |
|
Decoding Capability |
Smart Off:2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 20 x 720P@30, 32 x D1 Smart On:2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1 |
| Decoding Capability Description |
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
|
Protocols |
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| IP Video Input | 32-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
|
HDMI Output |
4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
VGA Output |
1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | |
| Two-way Audio | 1-ch,RCA(Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot |
4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local |
16-ch |
| Smart | |
|
VCA Detection by IPC |
Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD),People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
|
VCA Search |
Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch |
|
Smart by IPC |
All channels (up to 8 images/s in total)Face Detection, Face Comparison, Vehicle Detection, SIP, UMD, Traffic Monitoring |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR | 2-ch |
| UMD by NVR | 4-ch |
| Alarm | |
|
General Alarm |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
|
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (LatinAmerica), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | DC 12 V/5 A |
| Working Environment | |
| Working Temperature | -10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) |
≤ 12W |
| Dimensions | |
| Weight (without HDD) | ≤ 3.4Kg (7.5lb) |
| Dimensions | 440mm × 350mm × 48mm (17.3"×13.8"×1.9") |
